GMH Tower Storage Machines are designed for storing and handling of various types of heavy goods, especially material made of metal.

Tower Storage Machines are often used in the production for intermediate storage of material, near the cutting or bending machines, or as an inter-operative warehouse. The material stored is typically sheet metal or profile rods and tubes.

These systems offer the benefits such as:

  • “Goods to operator” principle
  • Quick and full access to stored goods
  • Effective space utilization
  • High capacity on small footprint
  • Safe environment
  • User friendly control system


GMH Tower: Mono, Double or Multi Tower storage system

The extractor which is part of the lift transfers the loading units, either between the storage locations within the system or to the operator area, from where handling can be carried out in ergonomic height. The vertical system can be fitted with more operator areas, either at front and/or at the side.

The operator area design allows you to load and unload entire packages of heavy material using a forklift, or to handle individual pieces, manually by a crane or automatically with in-out feeder. The operator area can also be equipped with a weight to register the weight of the material being loaded or unloaded.

A touch screen on the control panel enables manual or automatic mode of storage operations. The control system provides the operator with high-quality visualization of operational and diagnostic information. The control system is prepared for external communication and integration with Warehouse Management Systems.

It is possible to combine individually working Tower Storage Machines to create a controlled multi-warehouse system.

Mono Tower

Simple vertical storage system with one tower, lift and fixed operator table.

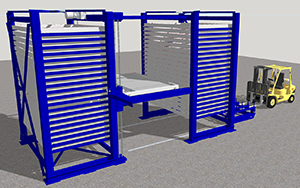

Double Tower

Set of two storage towers, with a single lift. Horizontal trolley transfers the loading unit from/to the operator area.

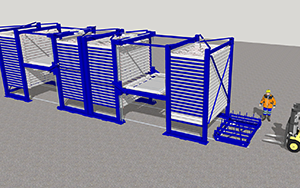

Multi Tower

System compiled as a module combination of Double Tower(s). The combination creates a large storage capacity.

For more information about GMH Towers contact:

KREDIT, spol. s r.o.
Tel: +420 572 614 211

GMH Tower MS

GMH Tower MS is designed for storage of sheet material, most commonly used for storing of metal sheets. The Tower MS can be designed as Mono, Double or Multi Tower.

Learn more
GMH Tower LS

GMH Tower LS is designed for storage of long span material like rods, bars and profiles. The Tower LS can be designed as a Double or Multi Tower.

Learn more

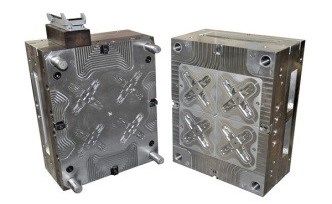

GMH Tower S

GMH Tower S is designed for storage of heavy oversized material, like press molds or heavy goods on special pallets.

Learn more
